REL15025
P1 Relay P1V1L10N2N2N0NN11N
Trade Price
POA
Per
1
Unit
Pack Quantity
Information
The Schneider Electric Easergy P1 Voltage Medium Voltage protection relay series offer a wide variety of protection for buildings. Perfectly suited for basic distribution in commercial, industrial buildings, utilities or as LV backup protection. The relay include protection for undervoltage, overvoltage, displacement and under-over frequency as per ANSI. It also feature a blocking logic and lockout. Simple, reliable, safe and easy-to-use, thanks to the User Interface display. The protection relay can to be supplied by a 24 VAC to 240 VAC or 24 VDC to 250 VDC network. Measurement of the network with 3 voltage transformers from 220 VAC to 480 VAC. It include 4 digital outputs. Mechanical dimensions are 116.5 mm in height (4.59in), 116.5 mm in width (4.59 in) and 108 mm in depth (4.25 in). The relays are certified with EN 60255-26 for electromagnetic compatiblity and EN 60255-27 for security. The device can be flush mounted in an enclosure. Compatible accessories: Wall mounting adaptor (REL15039), Front cover (REL15040), mounting spring clips (REL15041) or screw clamps (REL15042).
Technical Specifications
Range of produc
Easergy P1
Product or component type
Protection relay
Relay application
Voltage
product reference
P1
Device mounting
Flush
mounting support
Fixing kit
Mounting mode
Flush-mounted
power supply
24...240 V AC 24...250 V DC
measuring inputs
: VT voltage 0
number of Digital Inputs (DI)
0
number of Digital Outputs (DO)
4 DO 1 watchdog
Cybersecurity
Password protection
protection functions
Undervoltage 27 Overvoltage 59 Earth fault overvoltage 59N Lockout relay 86
Arc flash protection
No
control functions
Local/remote control
monitoring functions
Trip circuit supervision 74 Relay self-monitoring
logs and records
Trip context information
Switchgear diagnosis type
Trip circuit supervision ANSI code: TCS

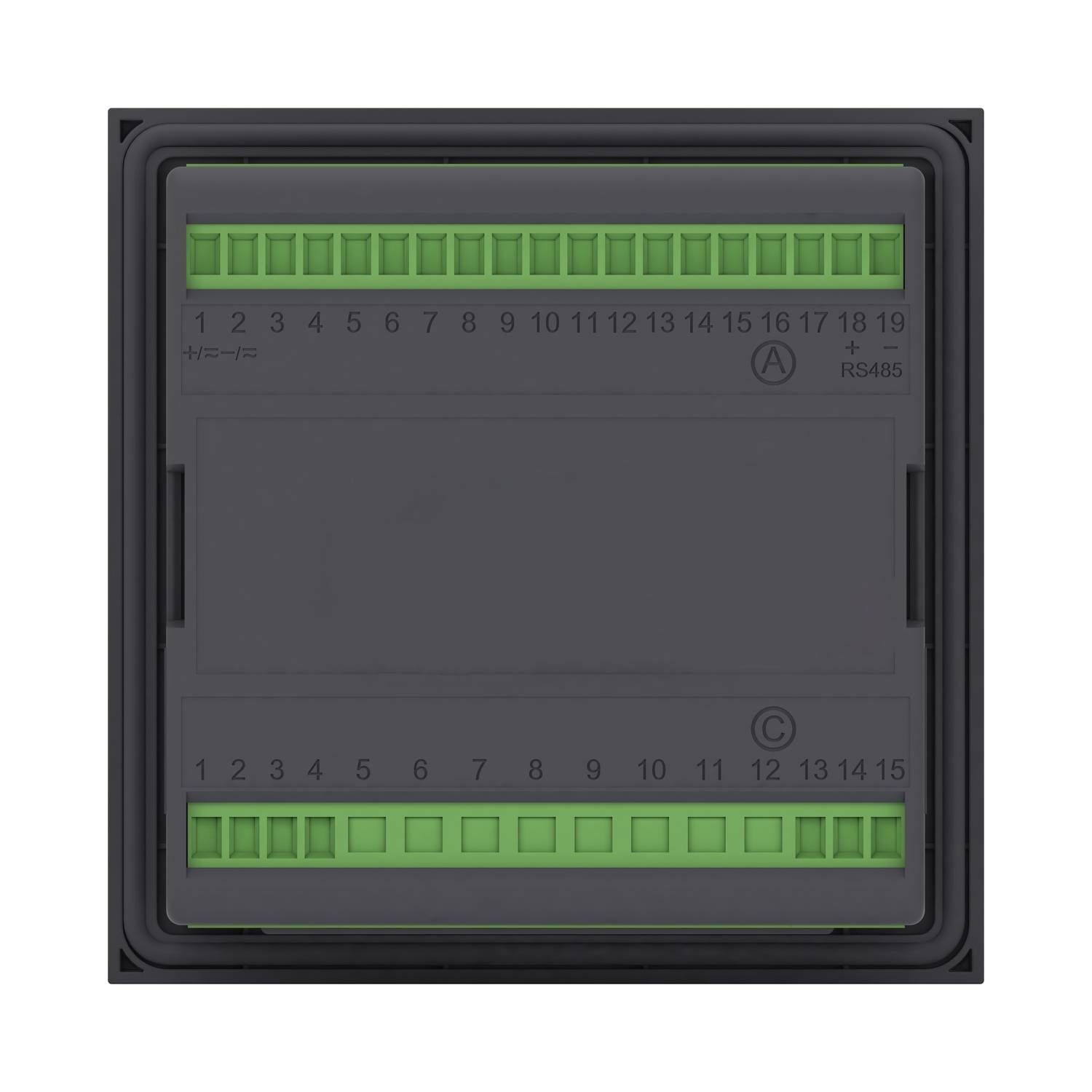

Connections - terminals
Snap-on fixed
Maximum power consumption in W
13.5 W AC 4 W DC
Display type
Graphic display terminal
Number of key
9
Local signalling
6 x LED red/orange programmable 1 x LED red relay trip indicator 1 x LED green watchdog
Standards
EN 60255-26:2009 EN 60255-1:2010 EN 60255-27:2005
product certifications
CE
Height
101.5 mm embedded: 116.5 mm total:
Width
101.5 mm embedded: 116.5 mm total:
Depth
108 mm embedded: 119 mm total:
Net weight
0.8 kg maximum
Directives
2006/95/EC - low voltage directive 2004/108/EC - electromagnetic compatibility
Electromagnetic compatibility
Electromagnetic immunity level 3 conforming to EN 61000-4-2/3/4/5/6/8
Mechanical robustness
Seismic tests: 2 Gn horizontal, 1 Gn vertical conforming to EN 60255-21-3 Shocks (level: class 1) : 5 Gn for 11 ms conforming to EN 60255-21-2 Shocks withstand (level: class 1) : 10 Gn for 16 ms conforming to EN 60255-21-2 Bumps (level: class 1) : 15 Gn for 11 ms conforming to EN 60255-21-2 Vibrations (level: class 1) : 1 Gn, 10...150 Hz, 1 cycle conforming to EN 60255-21-1
Ambient air temperature for operation
-25…60 °C -30…70 °C ( 16 h )
Ambient air temperature for storage
-30…70 °C
IP degree of protection
IP54 conforming to IEC 60529
Relative humidity
0…93 % at 40 °C, 21 days 0…93 % at 60 °C, 10 days 93 % at 25…55 °C, 6 cycles, 12 + 12 hours
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
19.5 cm
Package 1 Width
16.5 cm
Package 1 Length
16.5 cm
Package 1 Weight
793.0 g
Warranty
18 months
